Automatic Presses

Transmatic Automatic Presses – automatic heat presses designed for high production loads and industrial efficiency

Main Models:

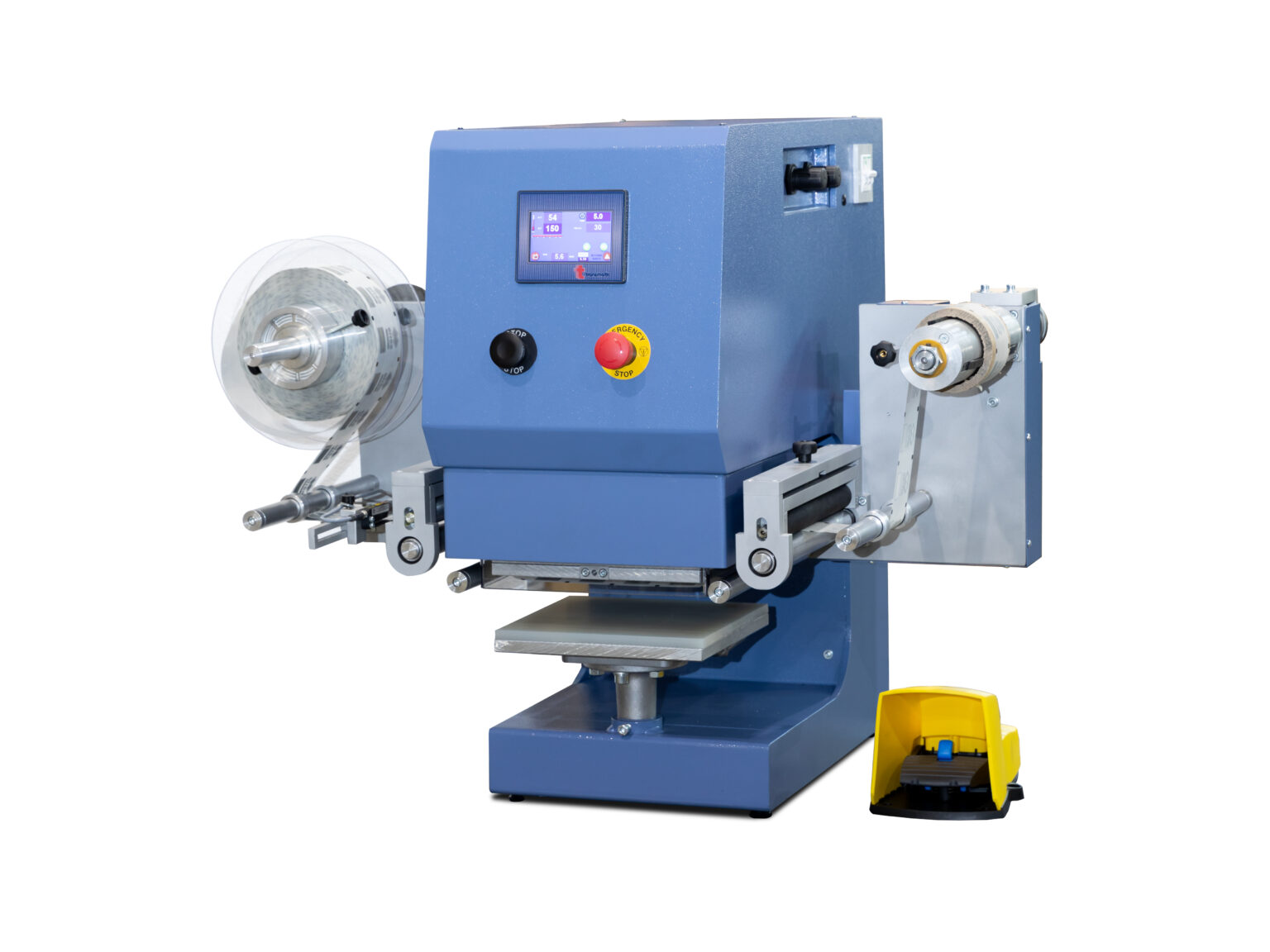

TMA 11 – automatic heat press with pneumatic control, specially designed for automatic transfer application:

Platen size: 12.5 × 15 cm
Temperature: 20 – 255 °C
Time: 0 – 999.9 s (~16 minutes)
Pressure: up to 1600 g/cm²
Power supply and consumption: 230 V, max. 1 kW, average consumption ~0.5 kW/h
Weight: approx. 75 kg (or 95 kg depending on the source)
Automatic transfer guidance using a foot pedal and infrared photoelectric sensor for precise positioning
Automatic activation and pressure after positioning – no additional operator needed for each print cycle.

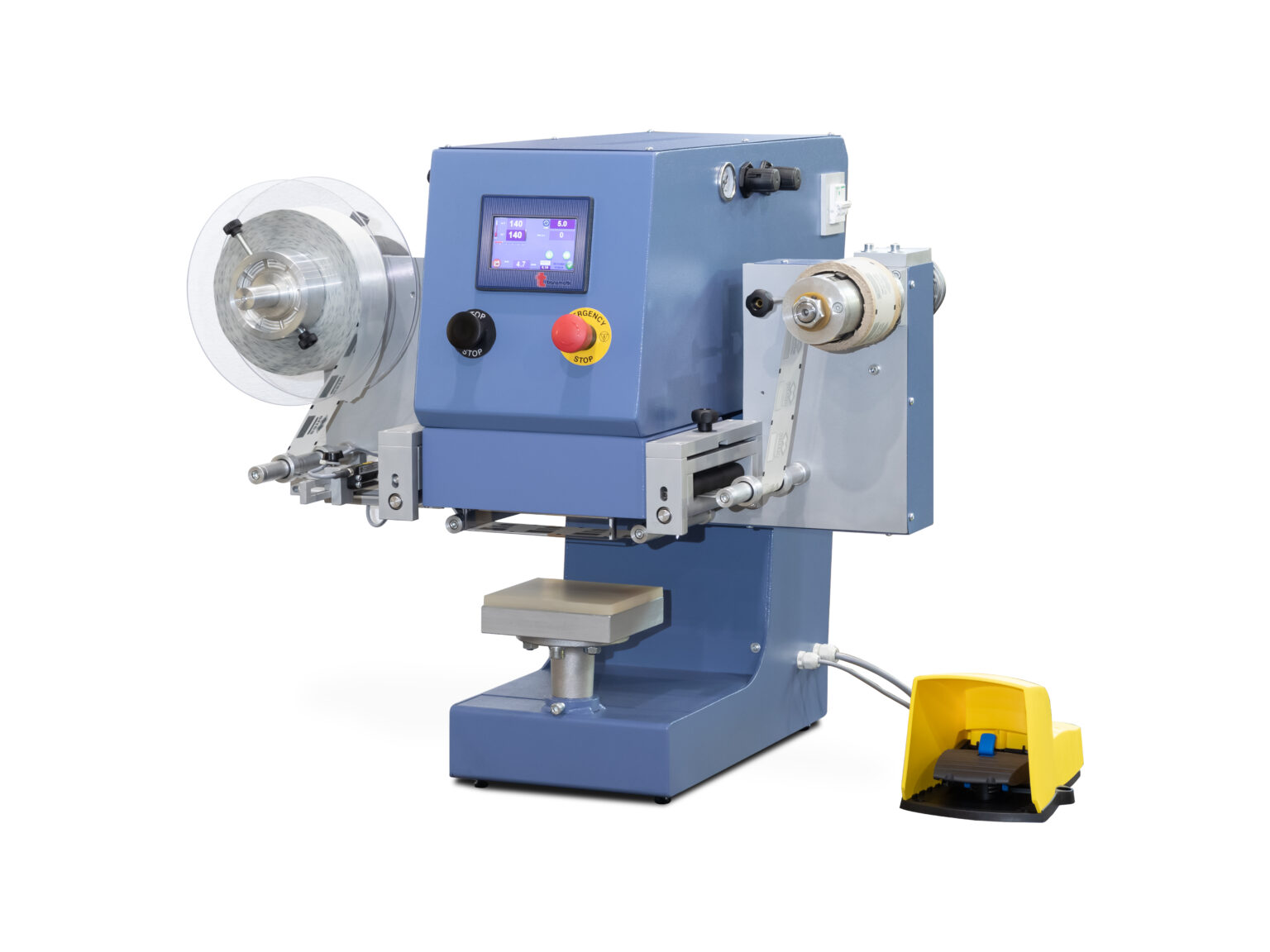

TMA 24 – automatic pneumatic heat press for roll-to-roll transfer:
Specifications:

Type: automatic, pneumatic, designed for roll-to-roll transfers
Platen size: 15×15 cm or 25×25 cm
Power supply: 230 V, consumption ~0.5–1 kW/h
Temperature range: 40–285 °C
Time: 0 to 999.9 s (~16 minutes)
Pressure: up to 1400–1600 g/cm²
Weight: approx. 90–150 kg (depending on configuration)
Automatic transfer positioning via infrared photoelectric sensor, compatible with transfers
sized 20×20–250×250 mm
Low pressure operation (0–92 g/cm²) to avoid marks on delicate fabrics
Suitable for various media – flock, flex, gold printing, leather, and plastic
Digital touchscreen control with storage for 4 programmable modes
Integrated diagnostics: daily/total counters, error signaling

Transmatic TMA 25 – automatic pneumatic heat press for roll-to-roll transfers:

Working size: 25×25 cm
Power supply: 230 V, power up to 1.6 kW, consumption ~0.5–1 kW/h
Temperature: 40–285 °C
Time: adjustable 0 to 999.9 s (~16 minutes)
Pressure: up to 1400–1600 g/cm²
Weight: 120 kg (80–90 kg for smaller variant)
Positioning with infrared photo sensor for transfers
Low pressure (0–92 g/cm²) to protect delicate fabrics
Suitable for flock, flex, gold, leather, and plastic labels
Digital touchscreen control with up to 4 saved programs, daily and total counters, error indication

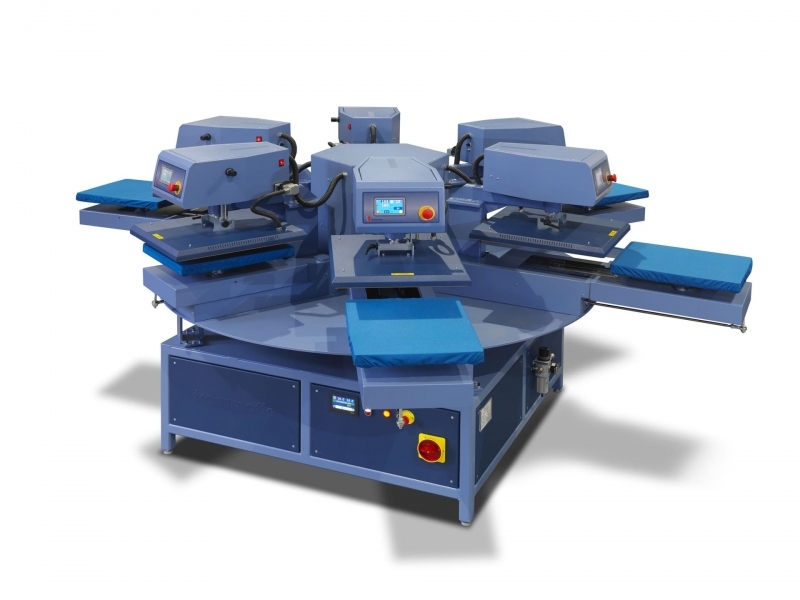

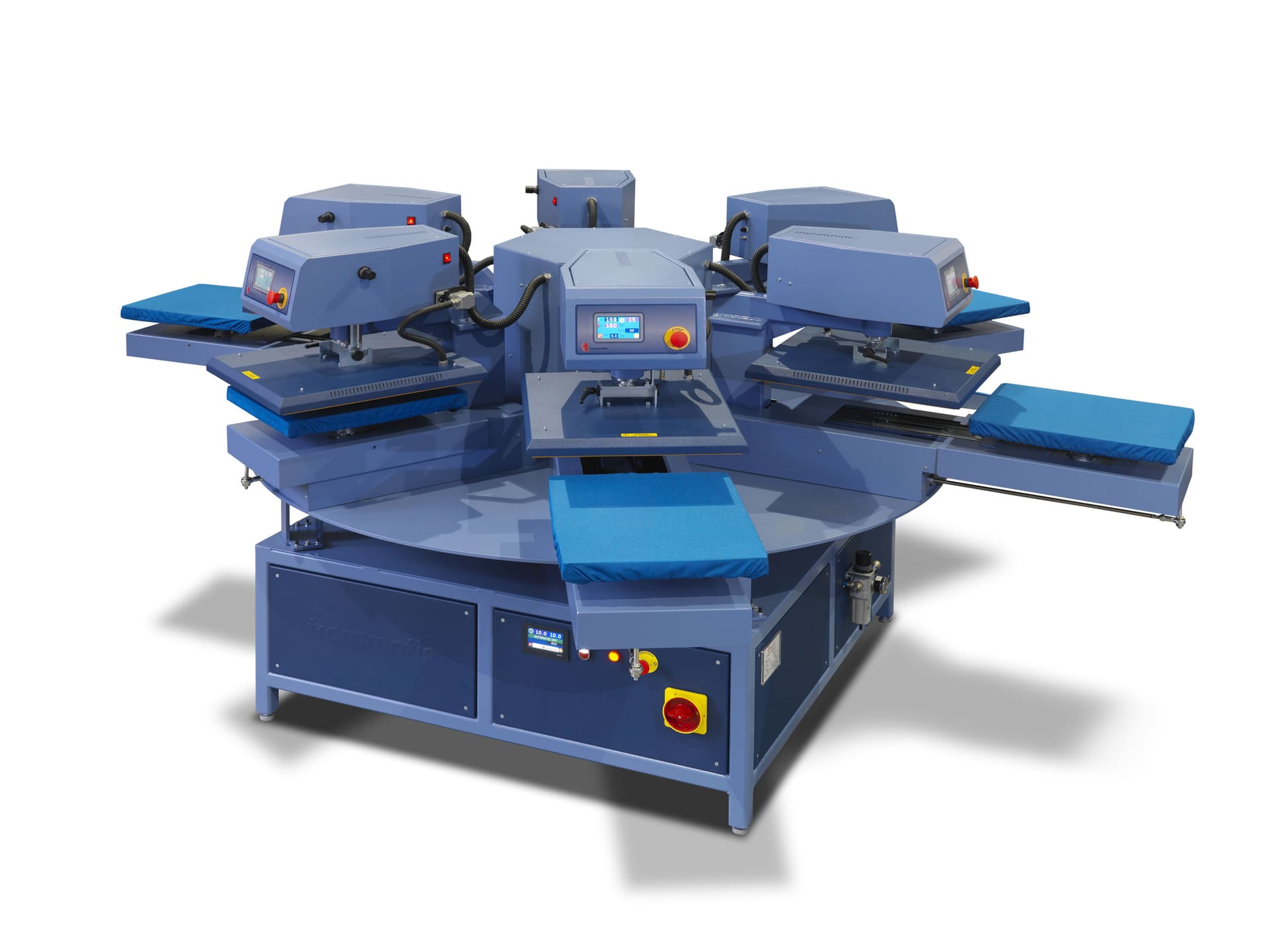

CA 1000 Carousel Heat Press – powerful automatic transfer printing machine:

4, 6, or 8 independent stations, each with individual control of time, temperature, and pressure
Standard platens: upper and lower platens 50×40 cm (other sizes available)
Temperature range: 0–255 °C
Pressure: up to 600 g/cm²
Power: 16.8 kW three-phase, consumption ~8 kW/h
Power supply: 380 V + N or 220 V three-phase
Automatic mode: rotation with set interval between 2–60 seconds
Manual mode: rotation via foot pedal control
Direct drive: no chains/gears, inverter motor and gearbox
Approximately 900 T-shirts/hour with 3 operators, 15 seconds transfer application, and 3 seconds rotation
CE certified – PLC control and electronic protections at each station
Easy loading: lower platforms slide out for convenient mounting/dismounting

Advantages of Automatic Systems:

Multiple stations allow simultaneous loading and pressing – high productivity
PLC and digital control 24/7 – fully automated opening/closing, settings, reporting, and protection
Flexible modes – customized timing cycles and rotation for optimal workflow
Integrated safety – safety sensors, electronic diagnostics, and CE compliance

Suitable for:

Medium and large production facilities
Companies with high daily volume producing hundreds or thousands of items per day
Factories with assembly lines or need for parallel operation of multiple stations (e.g., CA 1000 model)
Textile personalization businesses
Manufacturers of T-shirts, workwear, sports uniforms, children’s and promotional textiles
Presses like CA 1000 and other models in this series are ideal for transfer, DTF, and sublimation printing on cotton, polyester, and blends

Label and Decoration Brands:

TMA 11 / 24 / 25 series presses are excellent for automatic positioning and printing of labels, patches, caps, flock/flex materials

DTF / Sublimation Studios:

When consistent pressure and temperature accuracy are required, electric and pneumatic models guarantee high quality without operator fatigue

Companies Seeking Automation:

Businesses aiming to reduce manual labor, increase efficiency, and optimize production costs

Benefits for These Customers:
